JCB 525-60
5490kg
1890mm
Machine Weight
1890mm
Machine Width
Cab Height
6m
Lift Height
55kw
Engine Output
JCB 525-60
2-speed transmission allows you to select high and low speeds. The low speed setting complies with building site speed regulations, while high speed is ideal for road travel.
A hydrostatic transmission makes it easy to maneuver with precision even in cramped spaces. The driveline works in parallel with the braking system too; a transmission dump on the foot brake offers superb multi-functioning and increased power during loading and re-handling.
A low height of 6 ft 2 inches and a narrow width of 6 ft enables this JCB telescopic handler to access the smallest of operating environments. With a compact wheelbase and large steering lock angles, a tight turning radius and superior maneuverability are assured.
Your telescopic handler operators can maneuver quickly and easily with directional shuttle changes possible via either the shuttle lever on the steering column or the joystick-mounted shuttle switch.
JCB 535-140
JCB 535-140
This telehandler is built to provide up to 81kW or 108 horse power, delivered from its powerful JCB engine to the 10.88t 535-140 HiViz machine.
This JCB telehandler belongs to the medium sized machine segment in the telehandlers category. The 535-140 HiViz’s size is 2.35m x 6.23m x 2.59m. Standard tyres for this JCB 535-140 HiViz telehandler have a size of 15,5-25. Operators can travel by 32km/h with this telehandler.
It can operate with up to 9,6m of horizontal reach. It can lift 3.5t of nominal load with a 500mm centre of gravity. The JCB 535-140 HiViz can lift 3t at a full lift height of 13.8m. At full forward reach, this model can control a weight of 1.25t.
10880kg
1.25T
13.8m
81kw
Machine Weight
Lift Capacity at full reach
Lift Height
Engine Output
JCB 540-140
JCB 540-140
The 540-140 Hi Viz boasts class-leading visibility around the machine thanks to the low boom pivot point. Combine this with a wealth of safety features and you've got one of the safest machines on the market. Additionally, the latest and cleanest JCB 540-140 Hi-Viz Loadall is equipped with an ultra clean and efficient JCB Dieselmax Stage V engine.
For more info see:
10880kg
4T
13.78m
81kw
Machine Weight
Max Lift Capacity
Lift Height
Engine Output

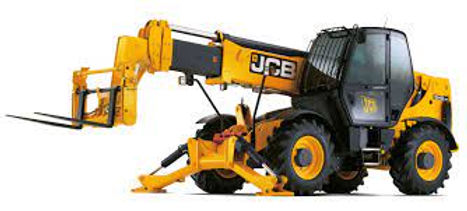

JCB 540-170
JCB 540-170
The latest and cleanest JCB 540-170 Loadall is equipped with an ultra clean and efficient JCB Dieselmax Stage V engine. JCB LiveLink enables remote monitoring of the machines DPF meaning JCB LiveLink can notify of any manual or service regeneration needed to protect the machine and ensure optimum performance.
A robust design, the 540-170 effortlessly reaches it's 17m lift height whilst maintaining full stability thanks to the patented Adaptive Load Control.
12160kg
4T
16.7m
81kw
Machine Weight
Max Lift Capacity
Lift Height
Engine Output
JCB 540-180
JCB 540-180
Specifically designed to spend as much time on site as possible, the 540-180 Hi-Viz has an impressive 17.51m lift height.
The ultra-efficient Smart Power, 55kW/74hp JCB EcoMAX engine variant will also remain free of after-treatment. Whilst JCB’s Smart Safety package ensures operators and workers alike remain safe on site.
11380kg
4T
17.51m
81kw
Machine Weight
Max Lift Capacity
Lift Height
Engine Output
