Snorkel Pop up Scissors S3010P
370kg
Machine Weight
Max Working Height
5m
240kg
Platform Capacity
160
Platform Rotation
o
Snorkel S3010P
The Snorkel S3010P push around mini scissor lift reaches high for indoor, low level working at height. With the highest reach of the push-around scissor lift line, this mini scissor lift is fitted with non-marking casters to easily navigate confined spaces. Built tough for construction and rental, the S3010P delivers on both height and performance.
​
-
Auto brake system
-
Tilt sensor
-
Saloon-door style entry gates
-
Integrated battery charger 90V - 240V
-
Battery charge indicator
-
Forklift pockets
-
Emergency lowering system
-
Non-marking casters
-
Slide-out service trays​
​
Snorkel ML 12C Material Lift
111kg
Weight
4.0m
Lift Height Forks Up
3.5m
Lift Height Forks Down
2.2m
Stowed Height
Snorkel ML 12c Material Lift
The Snorkel ML12C material lift is a robust machine for construction applications. Designed to quickly and securely raise loads, the ML12C is equipped a dual handle, shift-on-the-fly, two-speed winch. Quick-fold stabilizers and heavy-duty, non-marking casters are fitted as standard.
​
STANDARD FEATURES
-
Mast brake
-
Cable guard
-
Non-marking transport/loading wheels
-
Dual-handle, two-speed shift-on-the-fly winch
-
Metal cable pulleys with sealed bearings
-
Heavy-gauge aluminium extrusions
-
Heavy duty, non-marking casters
-
Crane attachment point
-
2 year parts & labour, 5 year structural warranty
-
CE approved
Lift height – forks up 4.0m
Lift height – forks down 3.5m
Stowed width 0.77m
Stabiliser width 1.63m
Stowed Length 0.85m
Operating length 1.75m
Stowed Height 2.2m
Fork width (outside) 0.58m
Fork length 0.76m
Ground Clearance 60mm
Max. load capacity (0.36m load centre) 340kg
Max. load capacity (0.61m load centre) 205kg
Max. load capacity (1.07m load centre) 91kg
Min. load height 150mm
Winch (high speed) 13.1 cranks/m
Winch (low speed) 49.2 cranks/m
Weight 111kg
S3215E/S3219E SCISSORS LIFT
1438kg
Machine Weight
Max Working Height
7.79m
2.11kg
Stowed Height
S3215E/S3219E
ELECTRIC SLAB SCISSOR LIFTS
Self-propelled electric scissor lifts
• Compact & nimble
• Drives through a standard doorway
• Suitable for indoor and outdoor use
• Easy to use & maintain
Roll-out deck extension with dual locks • Non-marking tyres • Loading control pendant • Swing-out service trays • Saloon-door style entry gates • Descent alarm • All motion alarm • 2 persons indoor • 1 person outdoor • Proportional controls, including descent • Power line to platform • Hour meter & on-board diagnostics display • Integrated battery charger • Battery condition indicator • Crane & forklift points • Dual lanyard attachments points • Flashing amber light • Scissor stack roller slide plates (set of 2) • 2 year parts & labour, 5 year structural warranty • CE approved
S3226E ELECTRIC SLAB SCISSOR LIFTS
2268kg
Machine Weight
Max Working Height
9.9m
2.3m
Stowed Height
S3226E ELECTRIC SLAB SCISSOR LIFTS
• Self-propelled electric scissor lifts
• Compact & robust
• Roll-out extension decks for extra reach
• Suitable for indoor and outdoor use (S3220E)
• Ideal for construction & maintenance applications
​Roll-out deck extension with dual locks • Non-marking tyres • Loading control pendant • Swing-out service trays • Saloon-door style entry gates • Descent alarm • All motion alarm • 2 persons indoor • 1 person outdoor (S3220E) • Proportional controls, including descent • Power line to platform • Hour meter & on-board diagnostics display • Integrated battery charger • Battery condition indicator • Crane & forklift points • Dual lanyard attachments points • Flashing amber light • Scissor stack roller slide plates (set of 2) • 2 year parts & labour, 5 year structural warranty • CE approved
A46 JRT DIESEL BOOM
370kg
Machine Weight
Max Working Height
16.3m
2.16M
Stowed Height

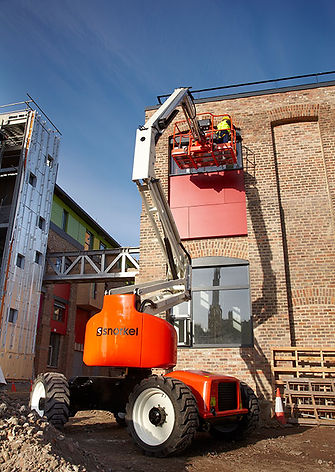

Snorkel A46 JRT Diesel Boom
Class-leading diesel articulated boom lift delivering a superb working envelope and excellent 4 wheel drive performance. Zero tailswing and a tight turning radius make this lift ideal for working in confined spaces or on a busy jobsite, and the powerful diesel engine and high grip tyres ensure that the A46JRT can tackle almost any type of terrain.
​
STANDARD FEATURES
-
Snorkel Guard™ secondary guarding system
-
Tri-entry platform
-
Drive motion alarm
-
Multi-function proportional controls
-
Oscillating front axle (A46JRT)
-
Power line to platform
-
Zero tailswing
-
Hour meter & on-board diagnostics display
-
Foam filled tyres (A46JRT)
-
Non-marking tyres (A46JE)
-
Battery charge indicator (A46JE)
-
2 year parts & labour, 5 year structural warranty
-
CE approved
Max Working Height 16.3m
Max Platform Height 14.3m
Max Working Outreach 7.35m
Clearance Height at Max Outreach 7.67m
Platform Size 1.0m x 1.83m
Chassis Width 2.1m
Overall Length 5.7m
Stowed Height 2.16m
Ground Clearance 330mm
Platform Capacity (SWL) 227kg
Max Drive Height 14.3m
Max Wind Speed 12.5m/s
Max Drive Speed (stowed) 6.8km/h
Max Drive Speed (elevated) 1.3km/h
Jib Length 1.5m
Jib Arc 140º
Platform Rotation 160º
Turret Rotation 360º non-continuous
Tailswing 0m
Raise/Lower Time 101/98 seconds
Gradeability 45%
Inside Turning Radius 0.8m
Outside Turning Radius 3.17m
Tyres High grip, foam-filled 355/55D625NHS 17.5
Controls proportional
Drive System 4 wheel drive
Power Source Kubota V1505 24.9hp diesel
Battery Charger n/a
Weight 7,540 kg
